FIBC Fabric Lamination Machine

Double Side Fabric Lamination in one Process
U Panel, Filling discharge Spout, Top Skirt

MODEL
COATIING WIDTH
SPEED
SCREW DIAMETER
L/D RATIO
SINGLE DIE WIDTH
CUTTER SLITTING IN THE MIDDLE
LAMINATE THICKNESS
DIMENSION

FD-SJ120-FMS2600
1000-2500MM
160/MIN
120MMx 2
33:1
2500MM COATING
1250MM WIDTH ROLLS X 2
0.012-0.050MM
10000(W)*12500(L)*3500(H)MM

Middle Slitter

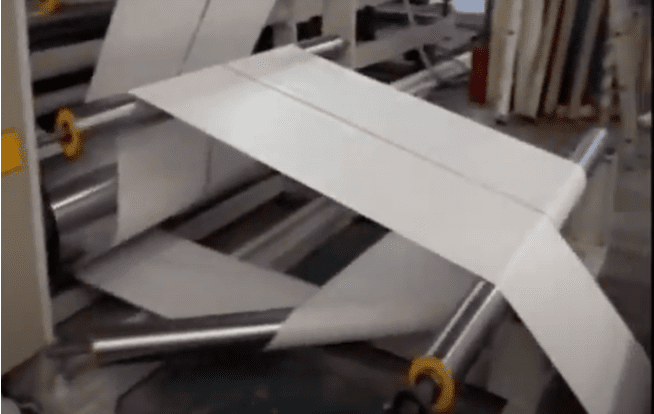

Triangle Process

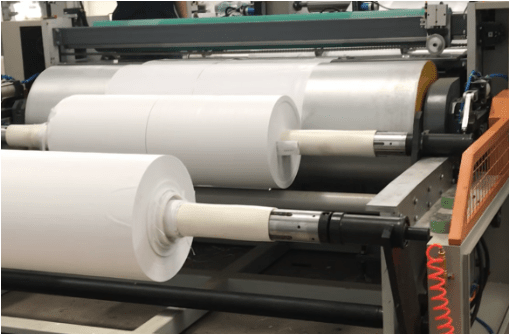

Auto Change Roll

Screen Shot 2021 11 03 at 2.47.35 PM FIBC Dual Extruder Lamination Machine

Dual Extruder Operation

FUNCTIONS

DUAL T DIE OPERATION

Two T Die fabric lamination process both side coating in one step, producing better quality lamination than triangle process.

Minimum width & Maximum width range: 1000MM-2500MM

SINGLE T DIE OPERATION

U PANEL:

By turning one T die off with single die with 2500MM coating operation and using the equipped cutting slitting in the middle to produce 2 X 1250MM width rolls.

FILLING DISCHARGE SPOUT:

Having single die width set to 1000-2500mm. Coating on small tubular fabric minimum of 4800MM while doing triangle style return. Resulting both side coating for small tubular fabric done in one process.

TOP SKIRT:

With our 2500MM width of lamination for flat fabric you could laminate and split the flat fabric into 3 rolls of 800MM fabric for the production of top skirt on FIBC bags. Cutting labor cost and time.

BENEFITS

Saving Space.
Lowering labor and production cost.
Two T Die Coating Process for better quality coating.
Triangle device function included also.
Multi Functional Usage (U Panel, Sprout, Double Side Coating)
European Quality.
High Return in Investment.

OPPORTUNITIES

Cutting the time, space and labor in your production and have multi purpose usages can not only open up more functions in your production plant, but also produce more customizable products.
With the same quality as European Machines, we are not only more multifunctional, but can cut down your return in investment time by half. lowering your risk for your investment with the same results.

Finished Product

Expert Adviser

With Leading PP Woven Related Experts whom are experienced with all aspects of the industry, customizing personal and tailored projects for the satisfaction of our customers. We Help understand every option and innovative ways to get the most efficient production available on the market.

Including full PP Woven Production Efficiency, After Service customer Care, Eco-Friendly Trends, and more.

Market Analysis

Though the 40+ years in the Polypropylene industry we have analyzed and tracked the global market changes and product advancements, but more importantly the innovative techniques of production and cost efficiency aspects to help our customers get the most out of their investment.

Customizing the best fit for each customer, creating personal projects to fulfill each of our requirements.

Whole Line Services

With our many satisfied global clients though out the years, FREDAVID knows all the know how on what is the best and efficient way of planning out the shipping schedule, installation, spare parts preparation and more to lower downtime and have a faster start for your business.

Fast and reliable after service for our customers, because we care.

Warranty & After Support

We are familiar with the common issues of working with global partners and plan ahead to minimize the downtime that affects your production.

Other than the one-year warranty that is automatically activated after the installation of the machinery, We will check-up from time to time and assist you with the frequently replaced spare parts, software updates, additional function add on’s and more.
